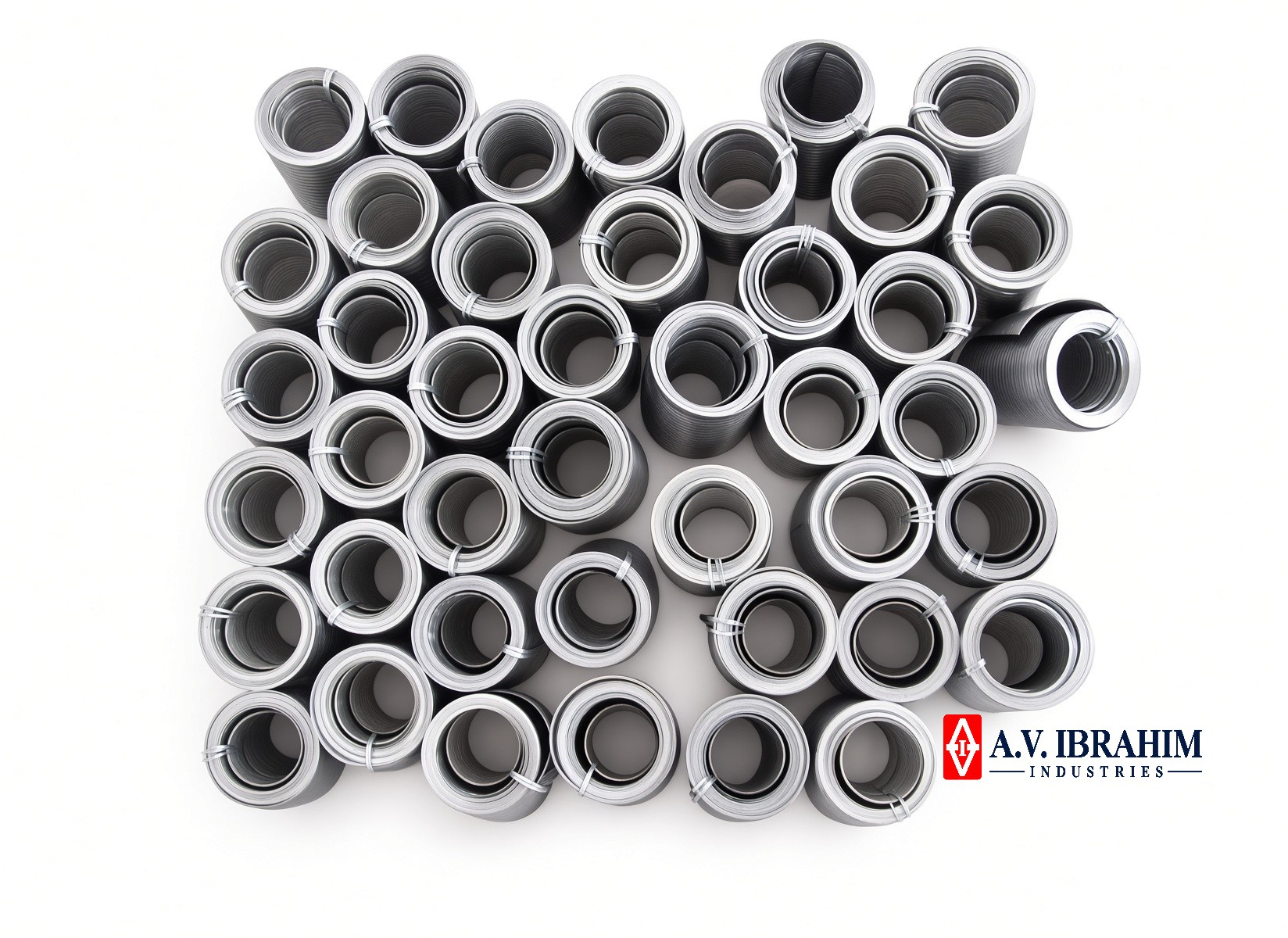

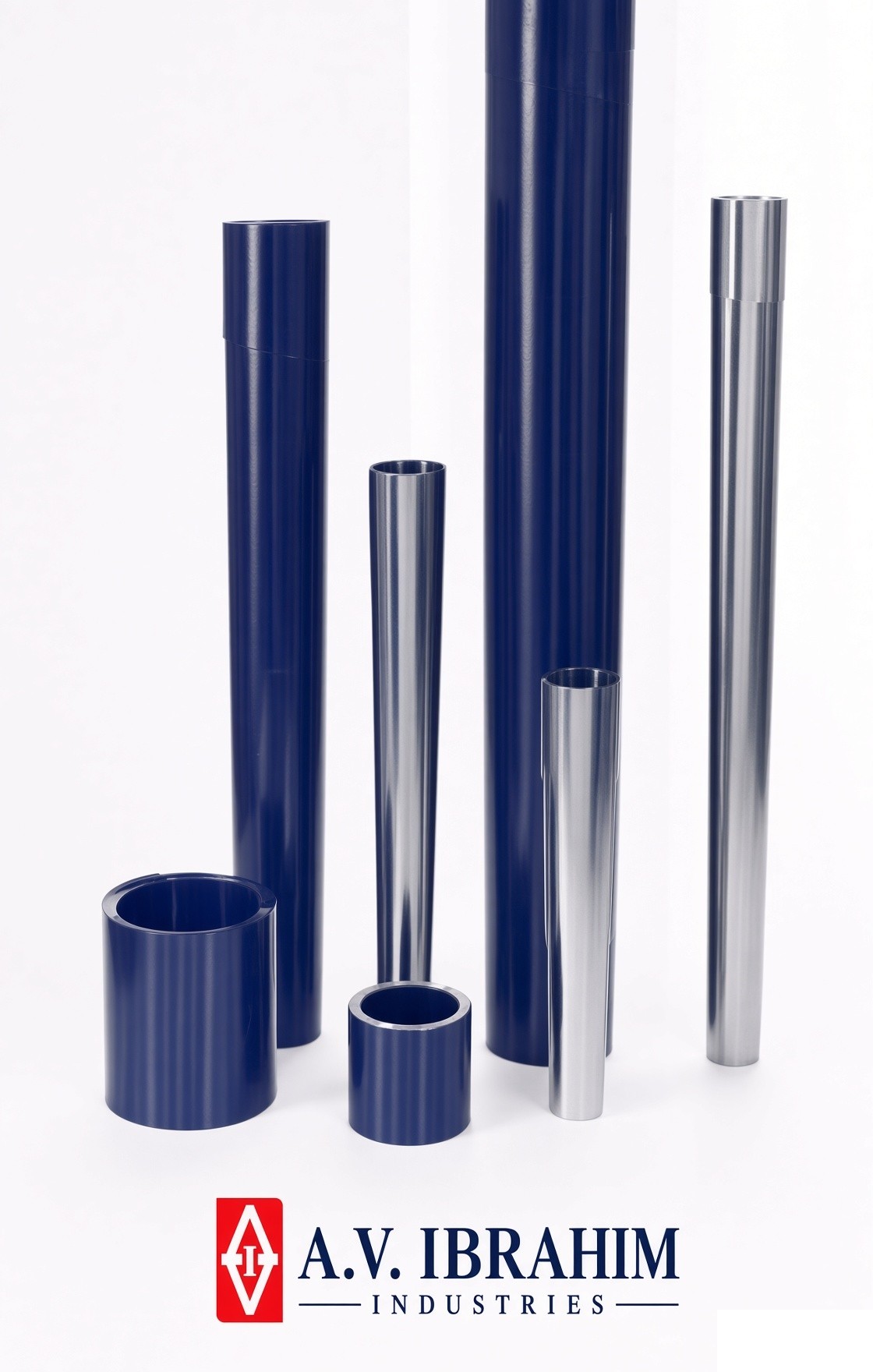

Telescopic Spiral Spring Covers

Our Telescopic Spring Covers are leading products for almost twenty years if you are looking for protection of your ball screws, columns, spindles and shafts you can consider using our Telescopic spring covers. They reduce the accident risk and increase the precision of your machines and their life. Spiral springs can be used in connection with all cutting and non-cutting machines. Telescopic Spring Covers are made of high quality hardened steel band with special hard wearing features due to our specialized method of finishing.

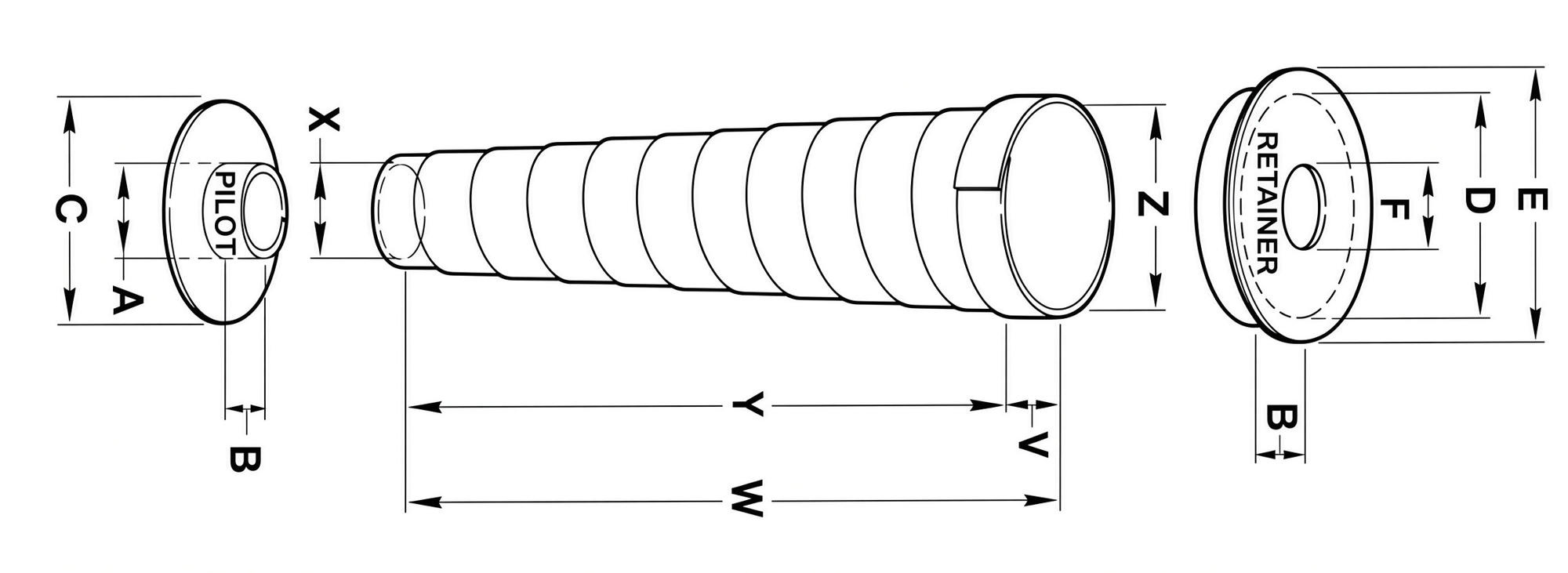

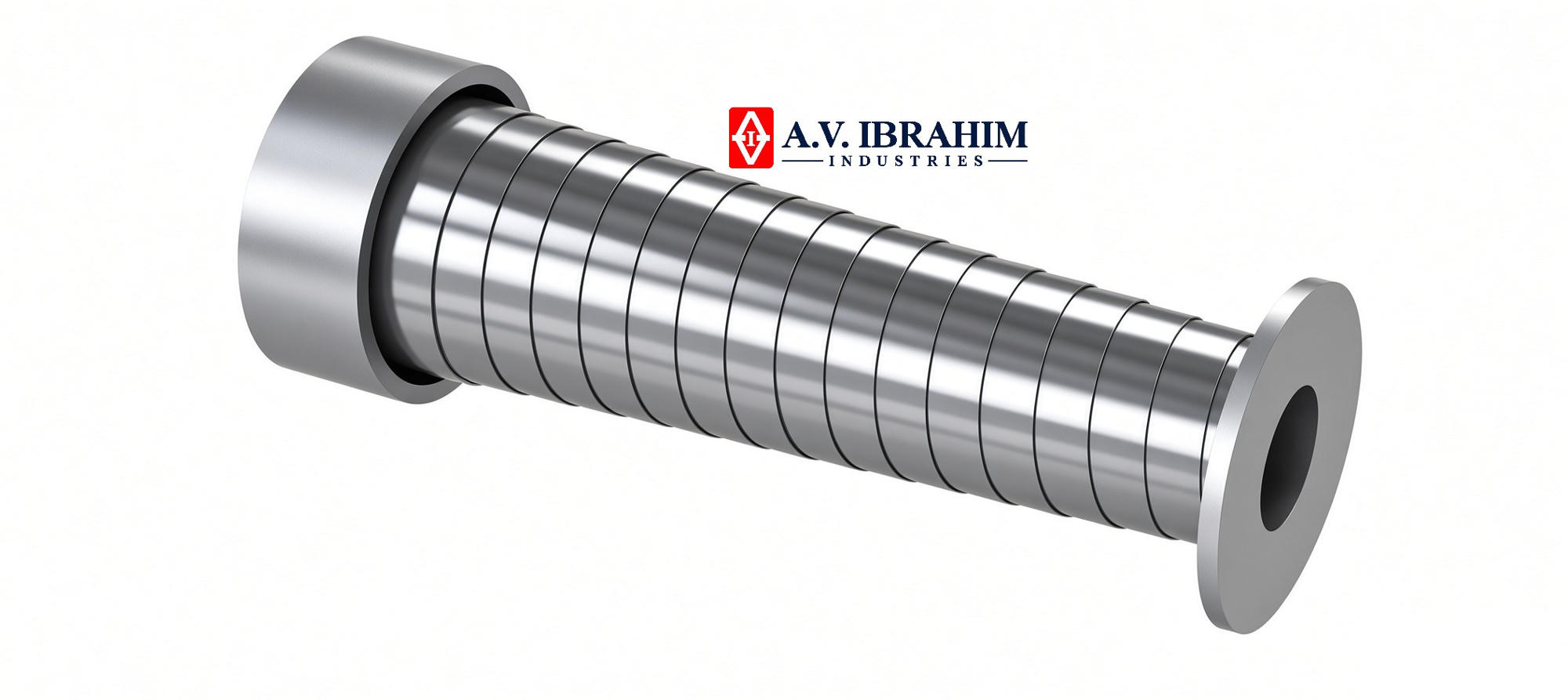

Telescopic Spiral Spring Cover technical drawing

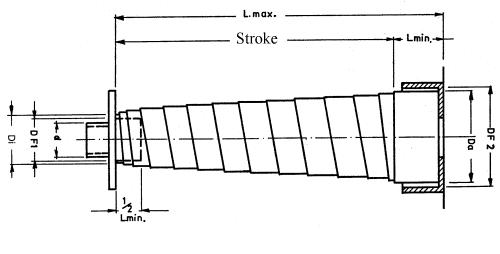

Standard types and dimensions Abbreviations

dmax – Maximal Inner Diameter of covered part

Di – Inner diameter of spring

Da – Outer diameter of spring

Lmax horizontal – Maximal extension for horizontal application

Lmax vertical – Maximal extension for vertical application

Lmin – Minimal compression (=steel band width)

na – not available, ask for a customized solution

Telescopic Spring Covers – Technical Specifications

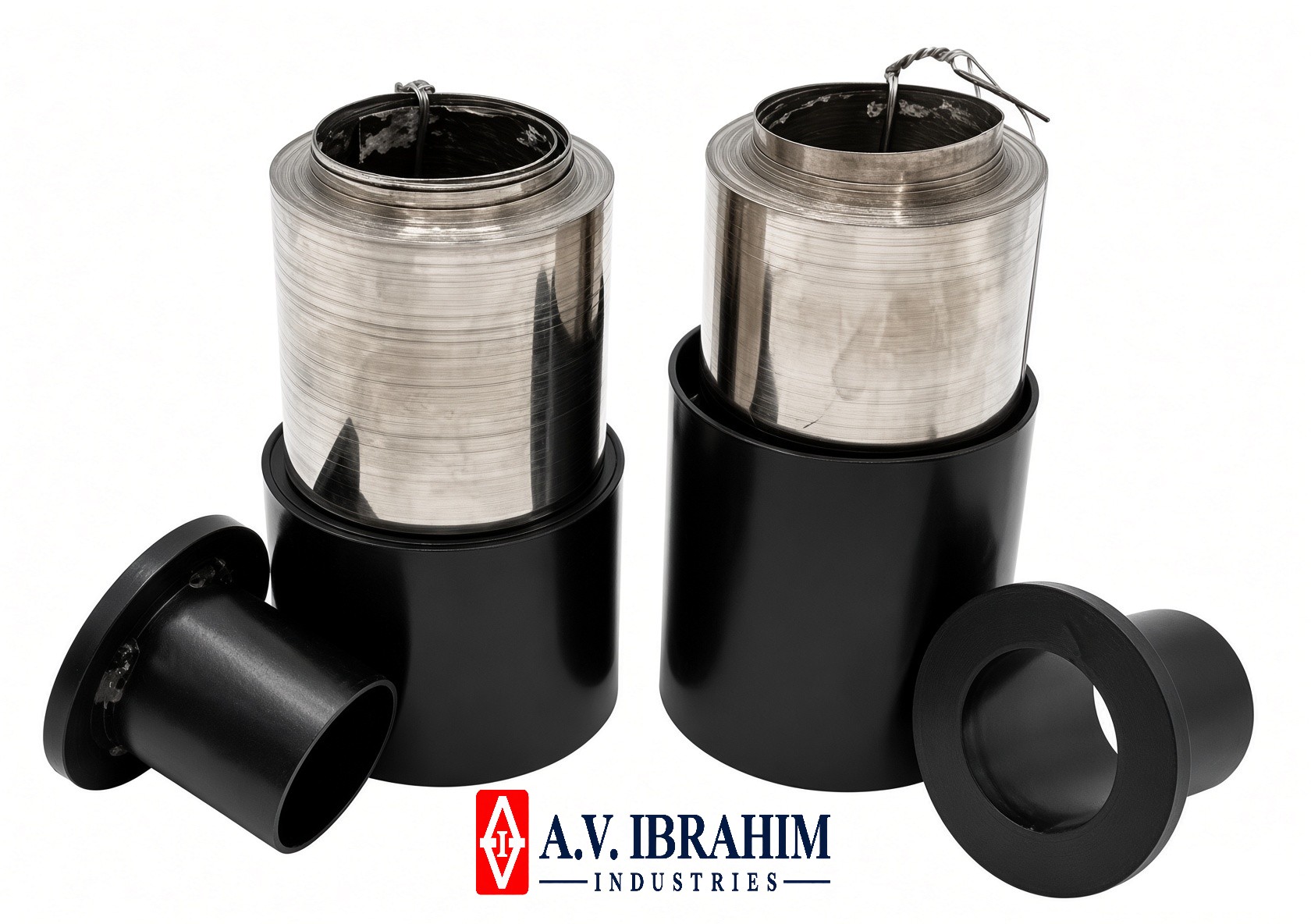

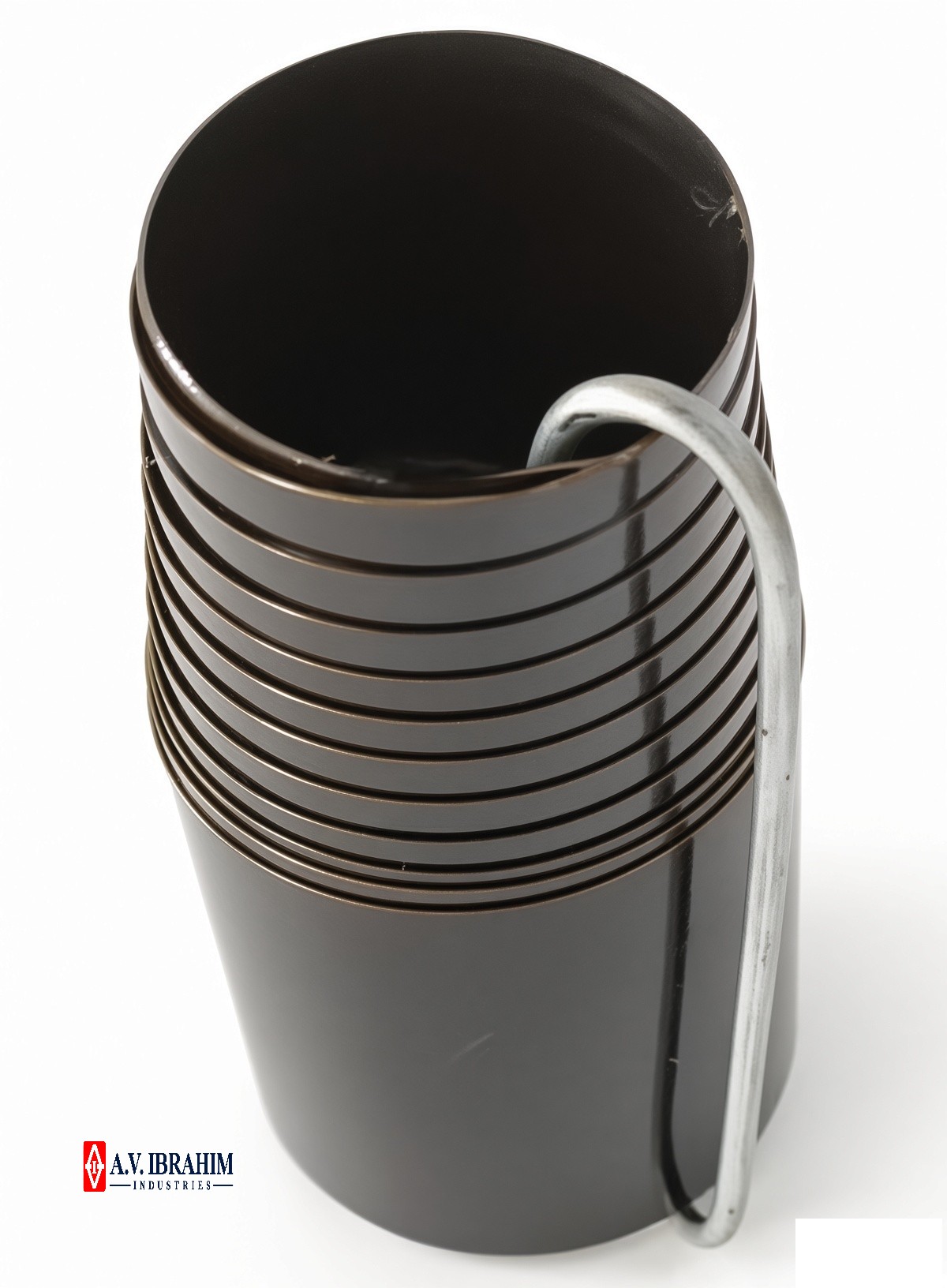

They are spirally wound and produced in the diameters and lengths shown in the tables. Varying band widths ensure a perfect functioning for the various stroke paths. Telescopic spring covers achieve extremely good seal between the single coils in any position. The coils are attached as shown by means of simple centering flanges which allow the coil turning movement. The flanges are not included in delivery. If requested, please give us detailed information about the intended mounting situation. In the case of vertical installation it is recommended that the greatest diameter is at the upper end, and when used horizontally in the direction shavings occur. No maintenance is required. Cleaning is recommended depending on the amount of soiling due to the application of a light film of oil.

For technical reasons, when ordering or inquiring it should be stated whether the flat Telescopic Spring Covers are to be installed vertically or horizontally. Please note the different extension lengths for vertical or horizontal types. We guarantee through our long-term experience of more than twenty years, our exclusive and specially developed machines and highest material requirements, you will receive reliable, affordable and perfectly performing spiral springs.

          We offer a wide range of sizes and different materials. Most telescopic spring covers can be also delivered in stainless steel quality (non-rusting), perfect for applications with water and humidity influence. All our spiral springs are customized. Some types are available from stock. We have decided not to have an extensive stock in order to give you better prices. We can still offer you excellent delivery times. After receiving your order, it will be leaving our factory within two weeks.


SPIRAL SPRINGS | customized + high quality + competitive prices + short delivery + complete product range

Dimension Tables – Telescopic Spring Covers

Note: Types highlighted in yellow are also available in stainless steel.

PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.	PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.
015/0070/020	11	15	22	—	70	20	030/0450/040	26	30	53	370	450	40
015/0100/020	11	15	22	60	100	20	030/0500/040	26	30	55	440	500	40
015/0120/020	11	15	22	90	120	20	030/0550/040	26	30	58	490	550	40
015/0150/020	11	15	28	110	150	20	030/0600/040	26	30	58	540	600	40
015/0200/020	11	15	31	160	200	20	030/0650/040	26	30	60	590	650	40
015/0300/020	11	15	32	260	300	20	030/0700/040	26	30	64	640	700	40
020/0100/020	16	20	30	60	100	20	030/0150/050	26	30	40	90	150	50
020/0150/020	16	20	33	110	150	20	030/0250/050	26	30	43	190	250	50
020/0200/020	16	20	36	160	200	20	030/0350/050	26	30	45	290	350	50
020/0250/020	16	20	39	210	250	20	030/0450/050	26	30	46	390	450	50
020/0300/020	16	20	41	260	300	20	030/0550/050	26	30	48	490	550	50
020/0250/030	16	20	36	210	250	30	030/0650/050	26	30	55	590	650	50
020/0300/030	16	20	39	260	300	30	030/0750/050	26	30	58	690	750	50
020/0350/030	16	20	41	310	350	30	030/0650/060	26	30	58	590	650	60
020/0400/030	16	20	43	360	400	30	030/0750/060	26	30	55	690	750	60
020/0400/040	16	20	35	360	400	40	030/0900/060	26	30	58	840	900	60
020/0450/040	16	20	41	410	450	40	030/1000/060	26	30	60	940	1000	60
020/0500/040	16	20	48	460	500	40	030/1300/060	26	30	62	1240	1300	60
025/0100/020	21	25	36	60	100	20	030/1000/075	26	30	57	900	1000	75
025/0150/020	21	25	38	110	150	20	035/0100/020	31	35	45	60	100	20
025/0200/020	21	25	40	160	200	20	035/0100/030	31	35	44	60	100	30
025/0250/020	21	25	44	210	250	20	035/0150/030	31	35	48	90	150	30
025/0300/020	21	25	46	260	300	20	035/0200/030	31	35	50	140	200	30
025/0300/030	21	25	42	240	300	30	035/0250/030	31	35	52	190	250	30
025/0350/030	21	25	45	290	350	30	035/0300/030	31	35	61	240	300	30
025/0400/030	21	25	48	340	400	30	035/0350/030	31	35	61	290	350	30
025/0450/030	21	25	49	390	450	30	035/0400/030	31	35	63	340	400	30
025/0450/040	21	25	48	370	450	40	035/0300/040	31	35	48	240	300	40
025/0500/040	21	25	49	420	500	40	035/0350/040	31	35	50	290	350	40
025/0450/050	21	25	41	390	450	50	035/0400/040	31	35	54	340	400	40
025/0500/050	21	25	42	450	500	50	035/0450/040	31	35	58	390	450	40
025/0550/050	21	25	43	490	550	50	035/0500/040	31	35	60	440	500	40
025/0600/050	21	25	44	540	600	50	035/0550/040	31	35	62	490	550	40
025/0650/050	21	25	45	590	650	50	035/0350/050	31	35	51	290	350	50
025/0750/050	21	25	47	690	750	50	035/0400/050	31	35	52	340	400	50
025/0900/050	21	25	57	840	900	50	035/0450/050	31	35	54	390	450	50
030/0150/030	26	30	39	90	150	30	035/0500/050	31	35	55	440	500	50
030/0200/030	26	30	42	140	200	30	035/0550/050	31	35	57	—	550	50
030/0250/030	26	30	44	190	250	30	035/0650/050	31	35	60	590	650	50
030/0300/030	26	30	48	240	300	30	035/0750/050	31	35	64	690	750	50
030/0350/030	26	30	49	290	350	30	035/0850/050	31	34	65	690	750	50
030/0400/030	26	30	50	340	400	30	035/0450/060	31	35	53	390	450	60
030/0450/030	26	30	53	390	450	30	035/0550/060	31	35	48	450	550	60

PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.	PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.
035/0650/060	31	35	59	590	650	60	040/1600/100	36	40	78	1400	1600	100
035/0750/060	31	35	60	690	750	60	040/1800/100	36	40	82	1600	1800	100
035/0850/060	31	35	60	790	850	60	040/1800/120	36	40	82	1560	1800	120
035/0550/075	31	35	54	490	550	75	040/2000/120	36	40	86	1760	2000	120
035/0650/075	31	35	56	590	650	75	040/2200/120	36	40	90	—	2200	120
035/0750/075	31	35	57	690	750	75	045/0150/030	41	45	56	90	150	30
035/0850/075	31	35	59	790	850	75	045/0250/030	41	45	61	190	250	30
035/1500/100	31	35	74	1440	1500	100	045/0350/030	41	45	65	290	350	30
040/0150/030	36	40	51	90	150	30	045/0400/030	41	45	66	340	400	30
040/0250/030	36	40	56	190	250	30	045/0350/040	41	45	65	290	350	40
040/0350/030	36	40	60	290	350	30	045/0400/040	41	45	68	340	400	40
040/0400/030	36	40	64	340	400	30	045/0450/040	41	45	69	390	450	40
040/0450/030	36	40	64	390	450	30	045/0450/050	41	45	66	350	450	50
040/0550/030	36	40	68	500	550	30	045/0550/050	41	45	68	450	550	50
040/0350/040	36	40	61	290	350	40	045/0650/050	41	45	75	550	650	50
040/0400/040	36	40	63	340	400	40	045/0350/060	41	45	63	230	350	60
040/0450/040	36	40	64	390	450	40	045/0450/060	41	45	65	330	450	60
040/0550/040	36	40	65	440	500	40	045/0550/060	41	45	65	430	550	60
040/0350/050	36	40	56	250	350	50	045/0650/060	41	45	69	530	650	60
040/0450/050	36	40	59	350	450	50	045/0700/060	41	45	70	630	700	60
040/0550/050	36	40	61	450	550	50	045/0650/075	41	45	67	500	650	75
040/0650/050	36	40	65	550	650	50	045/0750/075	41	45	70	600	750	75
040/0750/050	36	40	69	650	750	50	045/0900/075	41	45	78	750	900	75
040/0850/050	36	40	69	750	850	50	045/1100/075	41	45	84	950	1100	75
040/0350/060	36	40	55	230	350	60	045/1200/075	41	45	75	1150	1200	75
040/0450/060	36	40	58	350	450	60	045/1300/075	41	45	89	—	1300	75
040/0550/060	36	40	59	430	550	60	045/1000/100	41	45	71	800	1000	100
040/0650/060	36	40	62	530	650	60	045/1200/100	41	45	75	1000	1200	100
040/0750/060	36	40	63	630	750	60	045/1300/100	41	45	79	1100	1300	100
040/0900/060	36	40	70	780	900	60	045/1400/100	41	45	81	1200	1400	100
040/0650/075	36	40	63	500	650	75	045/1500/100	41	45	83	1300	1500	100
040/0750/075	36	40	66	600	750	75	045/1600/100	41	45	87	1400	1600	100
040/0900/075	36	40	71	750	900	75	045/1800/100	41	45	87	—	1800	100
040/1100/075	36	40	78	950	1100	75	045/1800/120	41	45	87	1560	1800	120
040/1300/075	36	40	84	1150	1300	75	045/2000/120	41	45	91	1760	2000	120
040/1500/075	36	40	90	—	1500	75	045/2200/120	41	45	100	—	2200	120
040/1000/100	36	40	68	800	1000	100	050/0150/030	46	50	63	90	150	30
040/1200/100	36	40	71	1000	1200	100	050/0200/030	46	50	65	200	250	30
040/1300/100	36	40	75	1100	1300	100	050/0250/030	46	50	66	190	250	30
040/1400/100	36	40	76	1200	1400	100	050/0350/030	46	50	73	290	350	30
040/1500/100	36	40	78	1300	1500	100

PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.	PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.
050/0250/050	46	50	62	150	250	50	055/0550/050	51	55	78	450	550	50
050/0350/050	46	50	66	250	350	50	055/0650/050	51	55	80	450	650	50
050/0450/050	46	50	70	350	450	50	055/0550/060	51	55	79	430	550	60
050/0550/050	46	50	73	450	550	50	055/0650/060	51	55	75	530	650	60
050/0600/050	46	50	75	—	600	50	055/0750/060	51	55	83	630	750	60
050/0650/050	46	50	76	550	650	50	055/0800/060	51	55	86	680	800	60
050/0350/060	46	50	66	230	350	60	055/0900/060	51	55	89	780	900	60
050/0450/060	46	50	65	330	450	60	055/1000/060	51	55	92	—	1000	60
050/0550/060	46	50	68	430	550	60	055/0600/075	51	55	80	450	600	75
050/0600/060	46	50	72	480	600	60	055/0750/075	51	55	83	600	750	75
050/0700/060	46	50	73	530	650	60	055/0800/075	51	55	86	750	900	75
050/0750/060	46	50	80	630	750	60	055/0900/075	51	55	89	750	900	75
050/0900/060	46	50	81	790	900	60	055/1100/075	51	55	94	950	1100	75
050/0750/075	46	50	78	600	750	75	055/1100/100	51	55	86	1100	1100	100
050/0900/075	46	50	84	750	900	75	055/1300/100	51	55	89	1100	1300	100
050/1100/075	46	50	90	950	1100	75	055/1500/100	51	55	94	1300	1500	100
050/1200/075	46	50	94	1050	1200	75	055/1600/100	51	55	102	1600	1800	100
050/1100/100	46	50	77	900	1100	100	055/1300/120	51	55	92	1080	1300	120
050/1300/100	46	50	80	1100	1300	100	055/1500/120	51	55	94	1280	1500	120
050/1500/100	46	50	88	1300	1500	100	055/1700/120	51	55	99	1460	1700	120
050/1600/100	46	50	89	1400	1600	100	055/1900/120	51	55	100	1660	1900	120
050/1700/100	46	50	91	—	1700	100	055/2100/120	51	55	105	1860	2100	120
050/1800/100	46	50	94	—	1800	100	055/2200/120	51	55	110	2060	2300	120
050/1700/120	46	50	91	1460	1700	120	055/2500/120	51	55	123	2500	2800	120
050/1900/120	46	50	96	1660	1900	120	055/2800/150	51	55	121	2200	2500	150
050/2100/120	46	50	100	1860	2100	120	055/3000/150	51	55	126	—	3000	150
050/2300/120	46	50	105	—	2300	120	055/3500/150	51	55	130	2500	3000	150
050/2500/120	46	50	115	—	2500	120	055/2800/180	51	55	124	2500	2800	180
050/2800/120	46	50	118	—	2800	120	055/3000/180	51	55	126	2640	3000	180
050/2500/150	46	50	116	2200	2500	150	055/3200/180	51	55	130	2500	3200	180
050/2800/150	46	50	118	2500	2800	150	055/3500/200	51	55	137	—	3500	200
050/3000/150	46	50	123	—	3000	150	060/0150/030	56	60	73	90	150	30
050/3000/180	46	50	123	2640	3000	180	060/0200/030	56	60	76	190	250	30
050/3250/180	46	50	128	—	3250	180	060/0250/030	56	60	78	190	250	30
050/3250/200	46	50	128	2850	3250	200	060/0250/050	56	60	73	150	250	50
050/3500/200	46	50	134	—	3500	200	060/0350/050	56	60	78	250	350	50
055/0150/030	51	55	67	90	150	30	060/0450/050	56	60	82	350	450	50
055/0250/030	51	55	73	190	250	30	060/0550/050	56	60	86	450	550	50
055/0300/040	51	55	71	220	300	40	060/0650/050	56	60	90	650	650	50
055/0450/040	51	55	76	370	450	40	060/0450/060	56	60	78	430	450	60
055/0250/050	51	55	66	150	250	50	060/0550/060	56	60	81	430	550	60
055/0350/050	51	55	71	250	350	50	060/0650/060	56	60	85	530	650	60
055/0450/050	51	55	74	350	450	50	060/0700/060	56	60	89	630	750	60

PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.	PART NO	Ø d	Ø D1 ±1	Ø D2 ±2	L max horiz.	L max vert.	L min.
060/0800/060	56	60	96	630	800	60	065/0800/060	61	65	98	680	800	60
060/0900/060	56	60	98	—	900	60	065/0900/060	61	65	103	780	900	60
060/0750/075	56	60	89	600	750	75	065/0750/075	61	65	93	600	750	75
060/0800/075	56	60	92	800	800	75	065/0800/075	61	65	96	650	800	75
060/0900/075	56	60	95	750	900	75	065/0900/075	61	65	99	750	900	75
060/1100/075	56	60	102	950	1100	75	065/1100/075	61	65	107	900	1100	75
060/1200/075	56	60	103	1050	1200	75	065/1300/075	61	65	111	1100	1300	75
060/1300/075	56	60	104	1150	1300	75	065/1500/075	61	65	115	—	1500	75
060/0900/100	56	60	85	700	900	100	065/1000/100	61	65	91	800	1000	100
060/1000/100	56	60	91	—	1000	100	065/1100/100	61	65	95	900	1100	100
060/1100/100	56	60	90	900	1100	100	065/1300/100	61	65	99	1100	1300	100
060/1300/100	56	60	94	1100	1300	100	065/1500/100	61	65	108	1300	1500	100
060/1500/100	56	60	100	1300	1500	100	065/1700/100	61	65	113	—	1700	100
060/1600/100	56	60	109	1600	1800	100	065/1800/100	61	65	119	1600	1800	100
060/1700/120	56	60	101	1460	1700	120	065/1500/120	61	65	100	1280	1500	120
060/1900/120	56	60	104	1660	1900	120	065/1700/120	61	65	108	1460	1700	120
060/2100/120	56	60	108	1860	2100	120	065/1900/120	61	65	109	1660	1900	120
060/2300/120	56	60	114	2060	2300	120	065/2100/120	61	65	113	1860	2100	120
060/2500/120	56	60	118	2300	2500	120	065/2300/120	61	65	118	2060	2300	120
060/2800/120	56	60	126	2500	2800	120	065/2500/120	61	65	126	2300	2500	120
060/2500/150	56	60	118	2300	2500	150	065/2800/120	61	65	134	2500	2800	120
060/2800/150	56	60	123	2500	2800	150	065/2400/150	61	65	120	2100	2400	150
060/3000/150	56	60	128	—	3000	150	065/2800/150	61	65	132	2500	2800	150
060/3500/150	56	60	138	—	3500	150	065/3000/150	61	65	142	2500	3000	150
060/3000/180	56	60	126	2640	3000	180	065/2800/180	61	65	136	2640	3000	180
060/3250/180	56	60	132	—	3250	180	065/3250/180	61	65	145	—	3250	180
060/3250/200	56	60	132	2850	3250	200	065/3250/200	61	65	136	2850	3250	200
060/3500/200	56	60	139	—	3500	200	065/3500/200	61	65	148	—	3500	200

Complete catalogue: The tables above cover the main standard ranges from Ø11 mm to Ø65 mm. The full manufacturer catalogue continues with larger diameters (Ø70–Ø160 and above) using the same column structure. Yellow highlighted rows are also available in stainless steel.

For any size not shown, or for a stainless steel version, please send your required Ød / stroke length and we will confirm the exact PART NO and price with short delivery.

Need Telescopic Spiral Spring Covers?

Share your required inner diameter, stroke length (horizontal/vertical) or drawing and get a quick quotation from our team.

📋 Fill Order Form → Request a Quote

A.V.IBRAHIM INDUSTRIES

Telescopic Spiral Spring Covers

Telescopic Spiral Spring Covers

Product Range

Quick Order

Reach Us

Need Telescopic Spiral Spring Covers?
