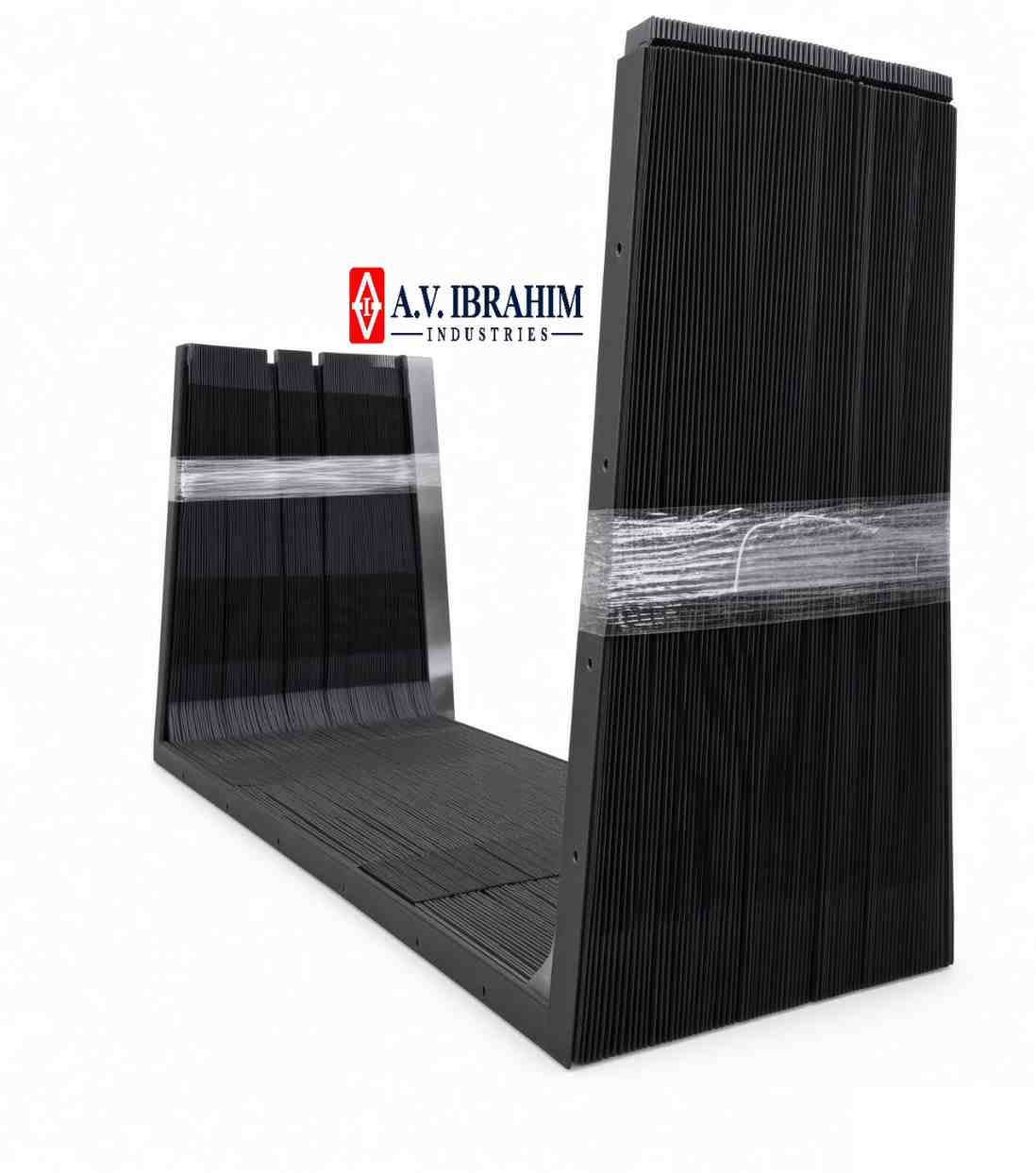

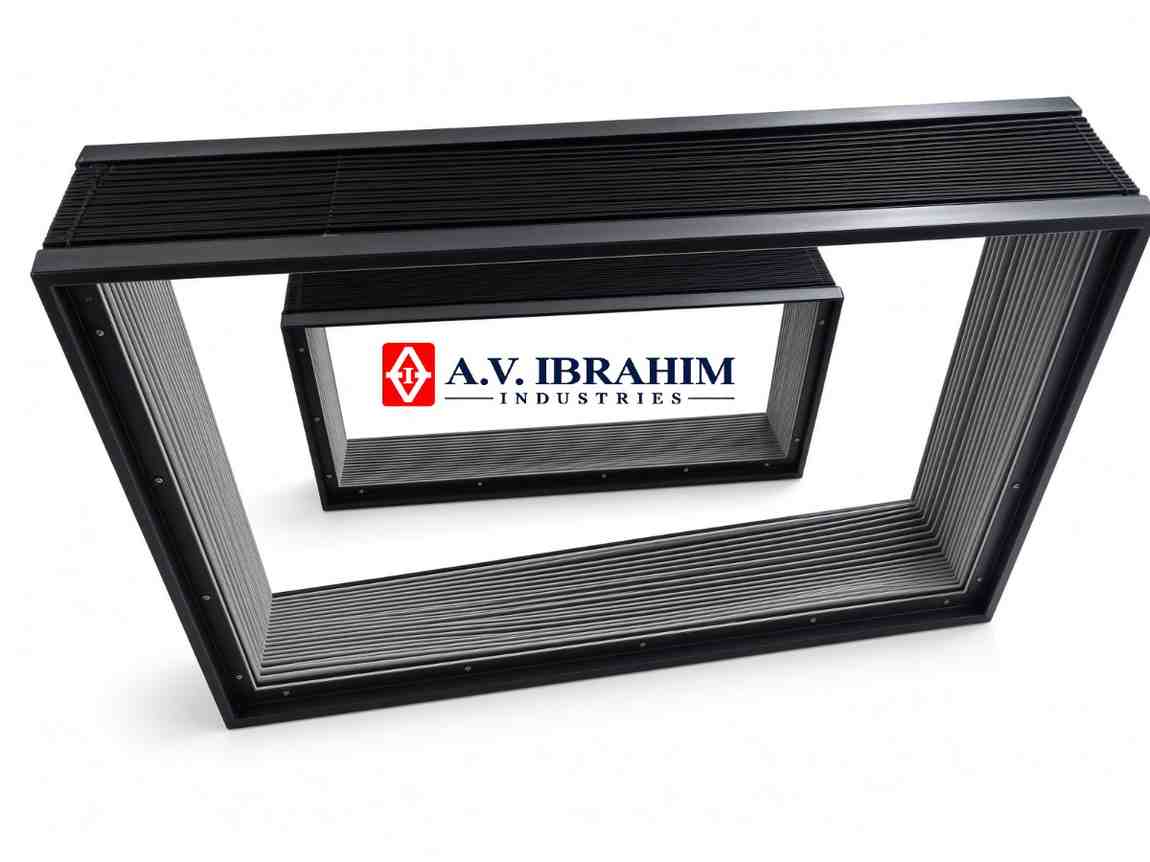

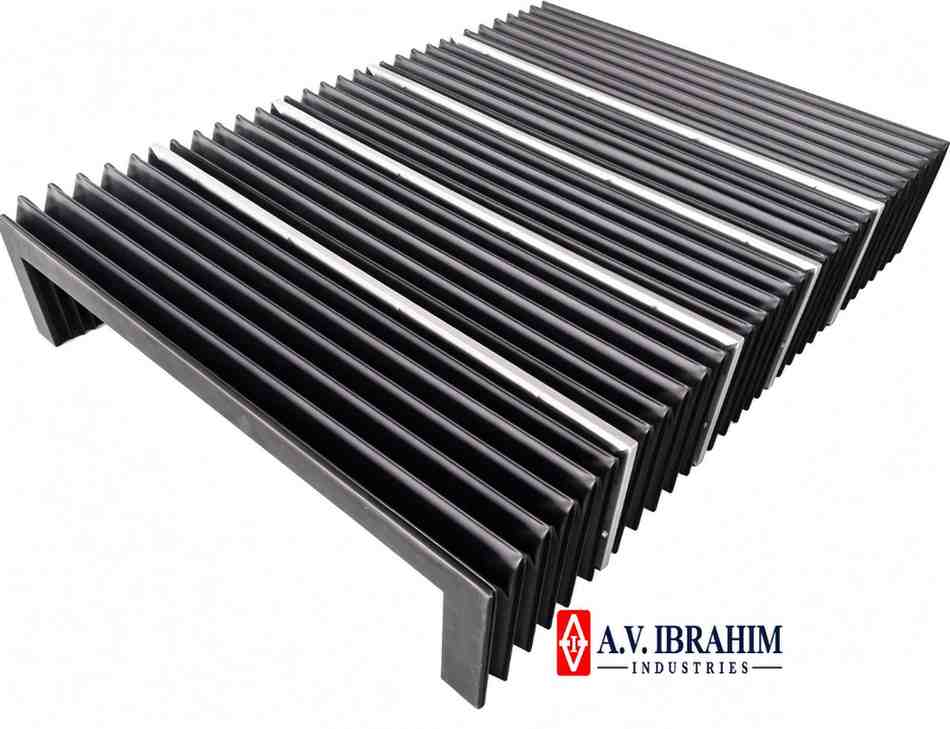

Elastic Bellows

A wide range of materials is available to cater for most applications and conditions of operation. External influences such as hot shavings, heavy volumes of water and special cooling agents are to be taken into account.

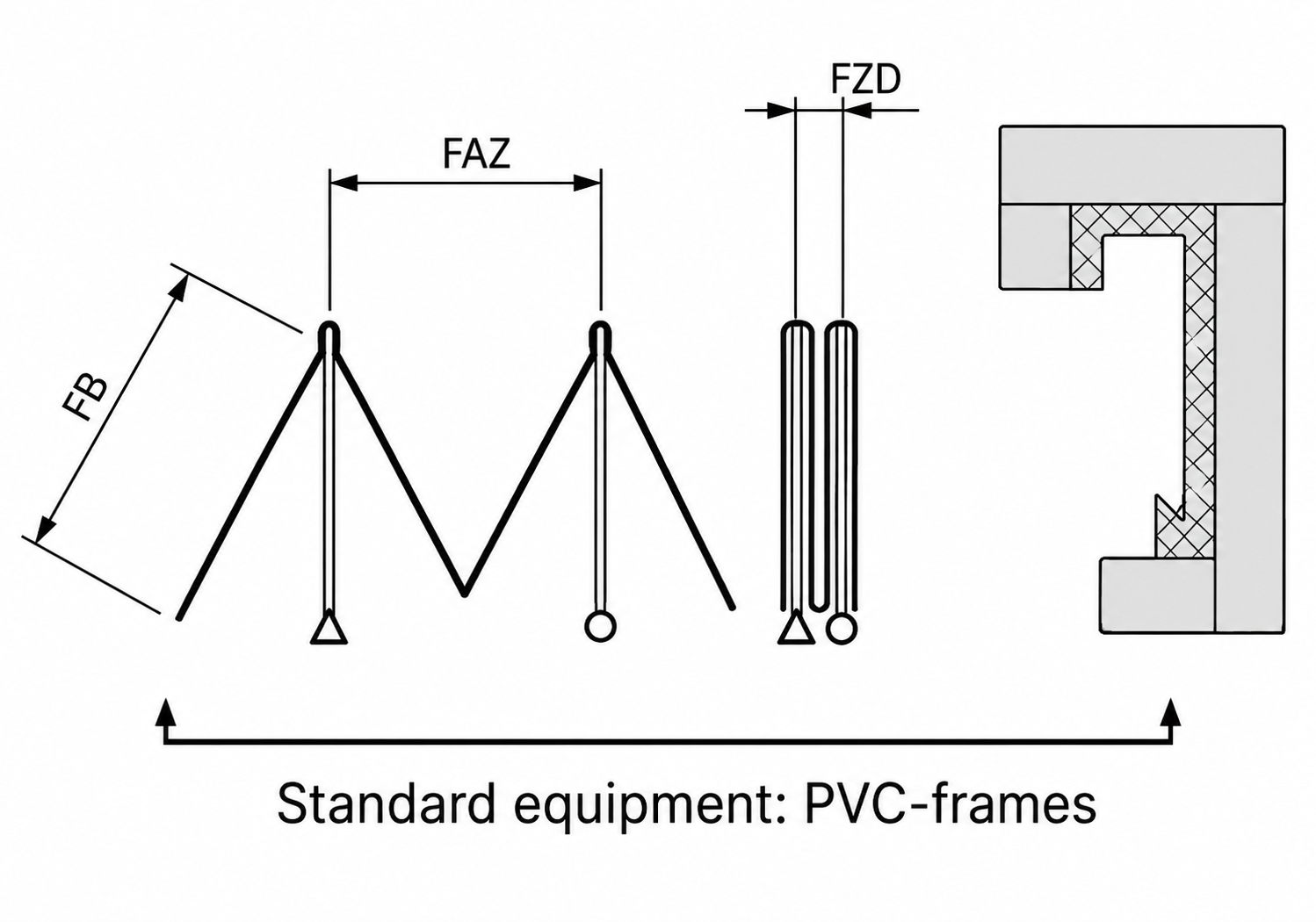

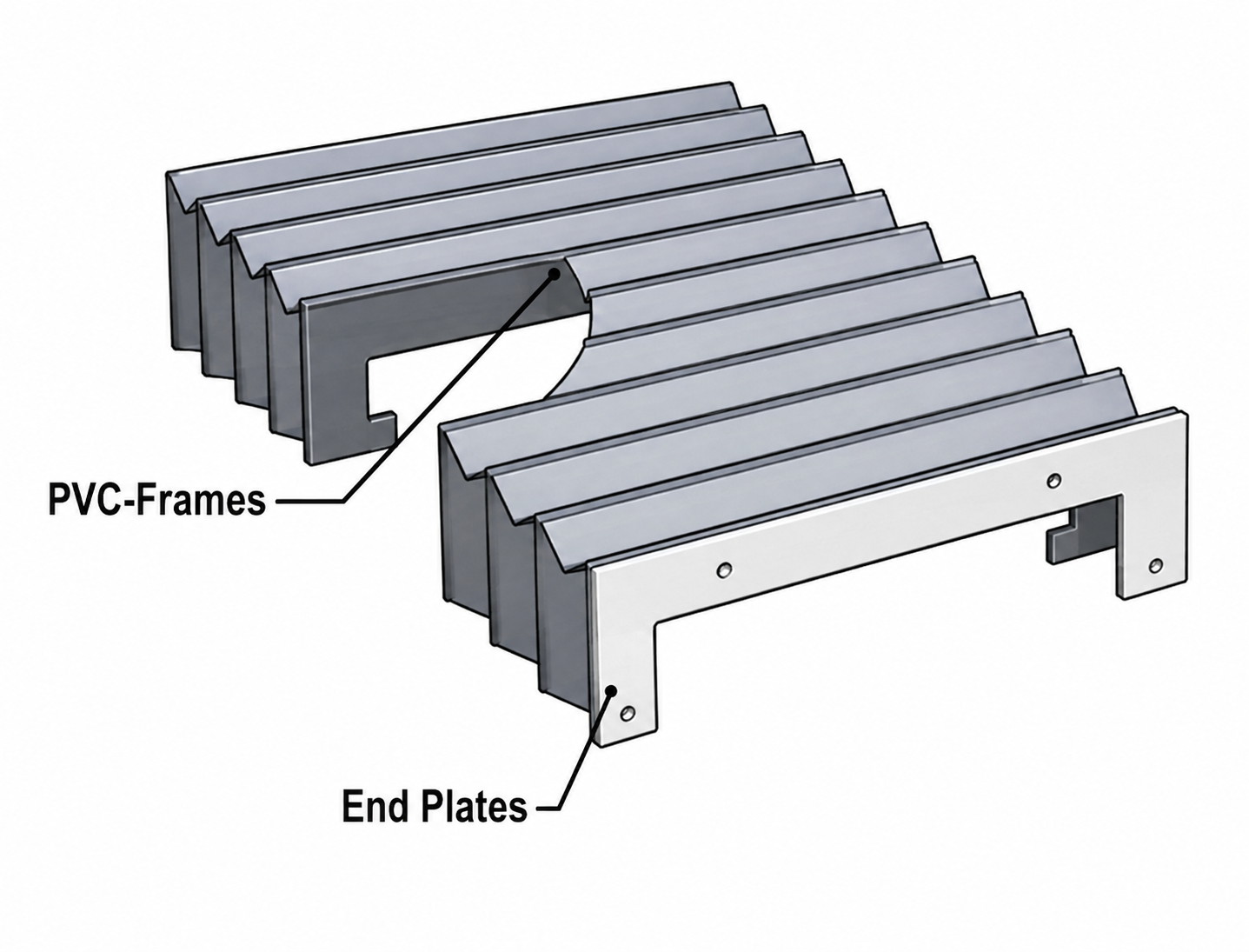

All types of elastic bellows are produced in single layered material, either thermally sealed or stitched/sewn. Our thermally sealed elastic bellows are absolutely water and liquid resistant. Through a unique process we create an indestructible connection between the inside PVC-frame and the outside bellow-material. The thermally sealed elastic bellows offer excellent resistance, an absolutely liquid-proof surface, low weight and fast travel speeds.

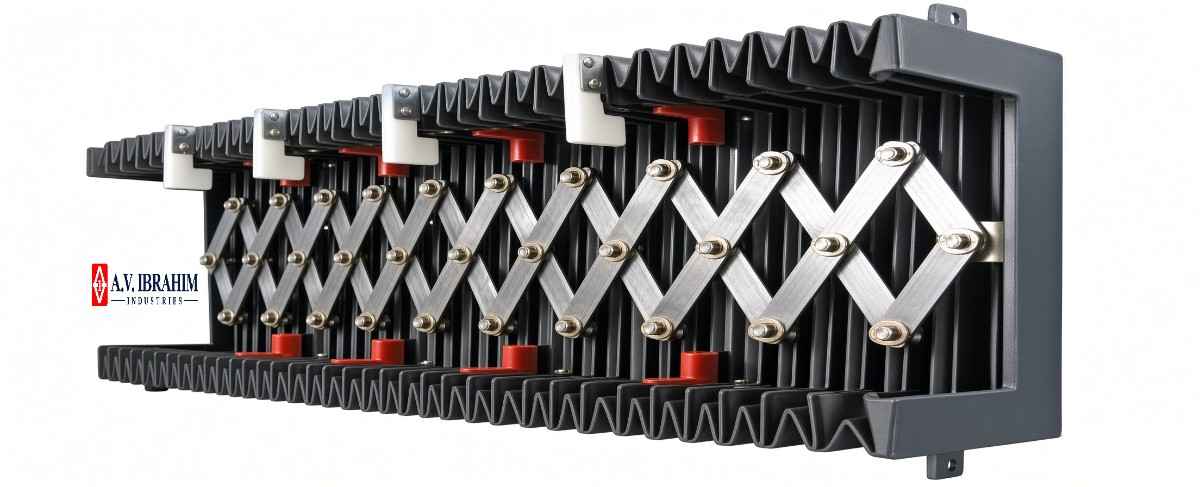

Another possibility especially for high-temperature applications, is our stitched design. We create an indestructible, very solid connection between the PVC-frame and the bellow material. By using special materials (e.g. Kevlar) for the stitched seams we can guarantee excellent high-temperature durability. Thermically sealed or stitched, two smart ways to create a perfect bellow for almost any application. Combine them with stainless steel or aluminum plates and you will get our famous SAMURAI™ plated bellows.

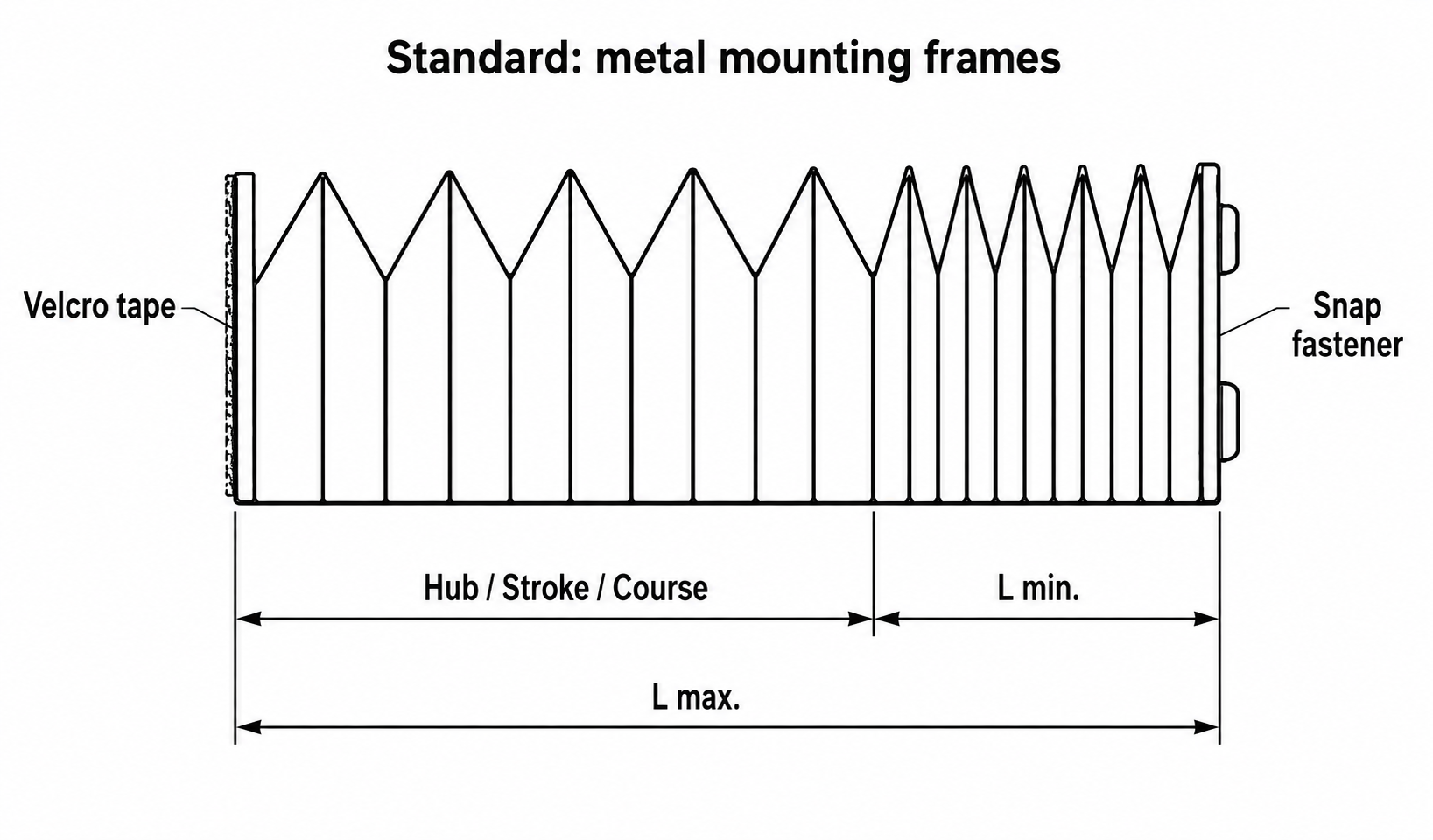

Metal fixing frames, snap fasteners or velcro tape can be supplied within the dimensions of the bellow or to suit special applications.
