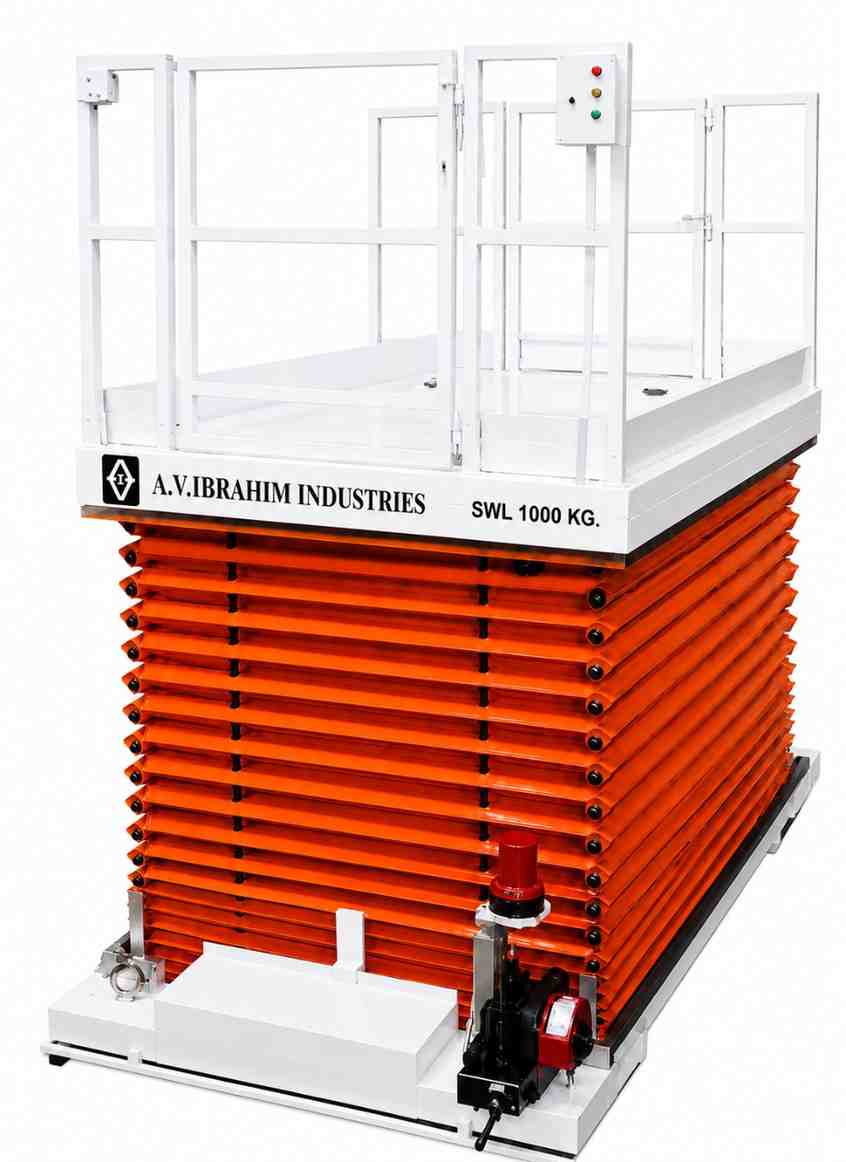

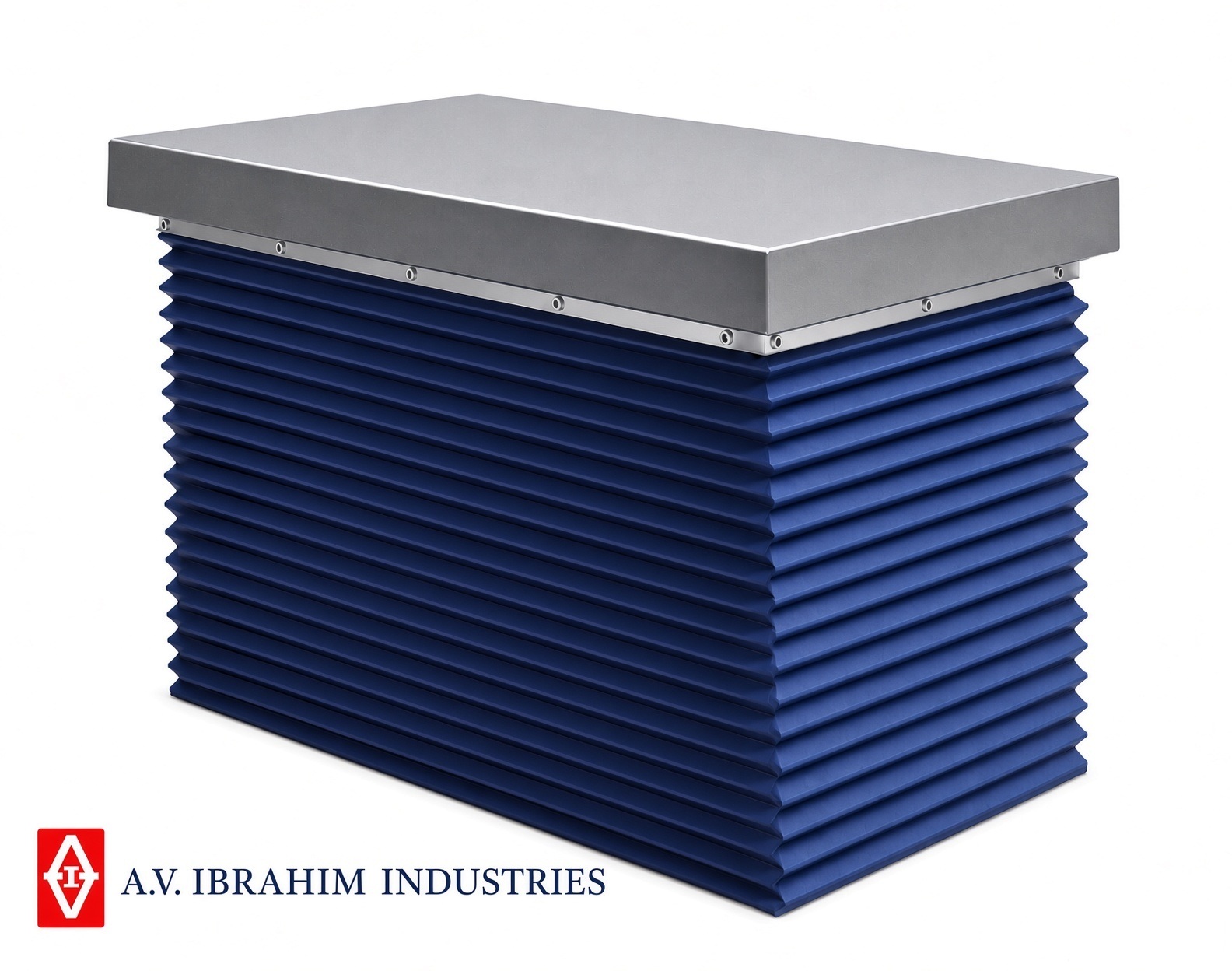

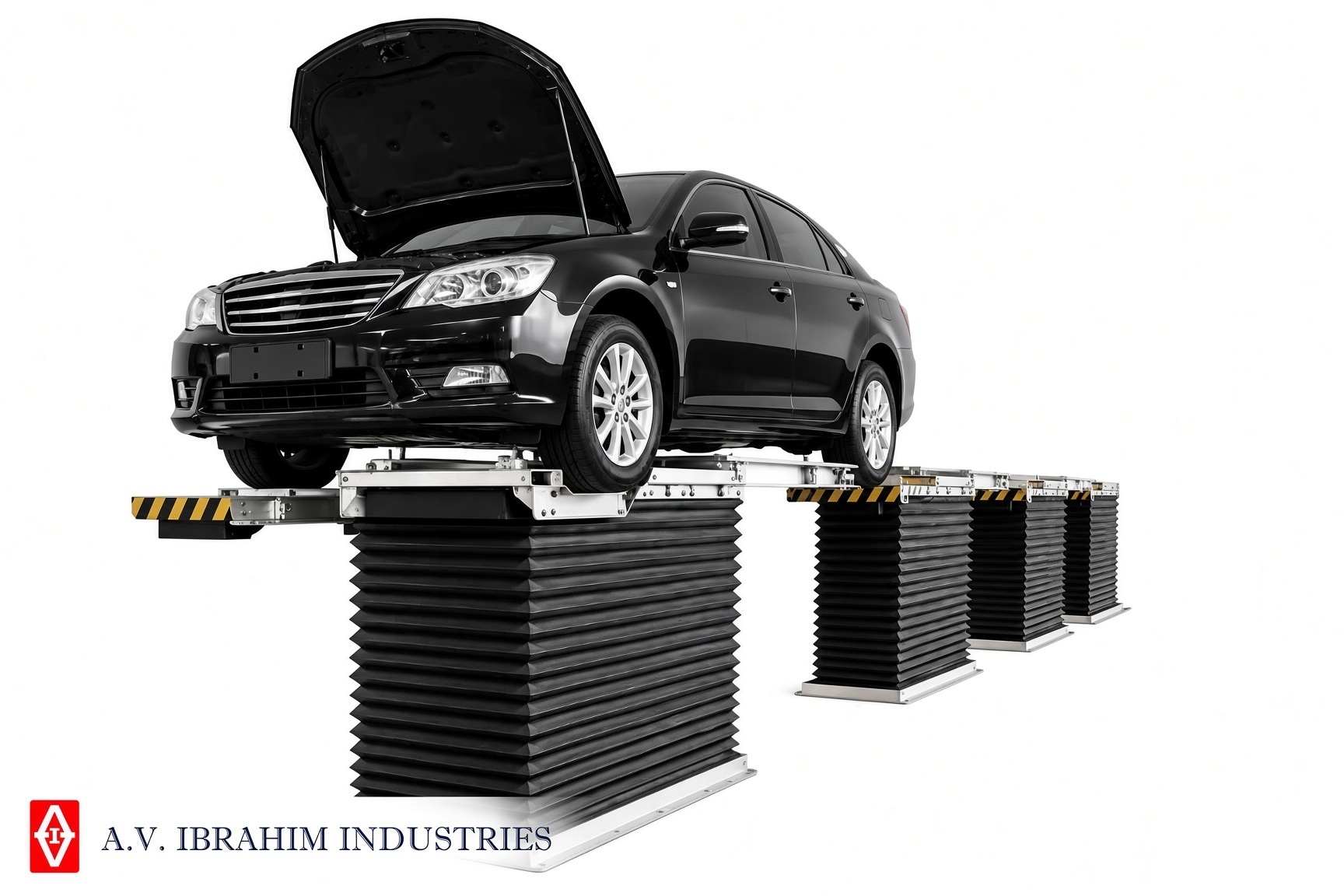

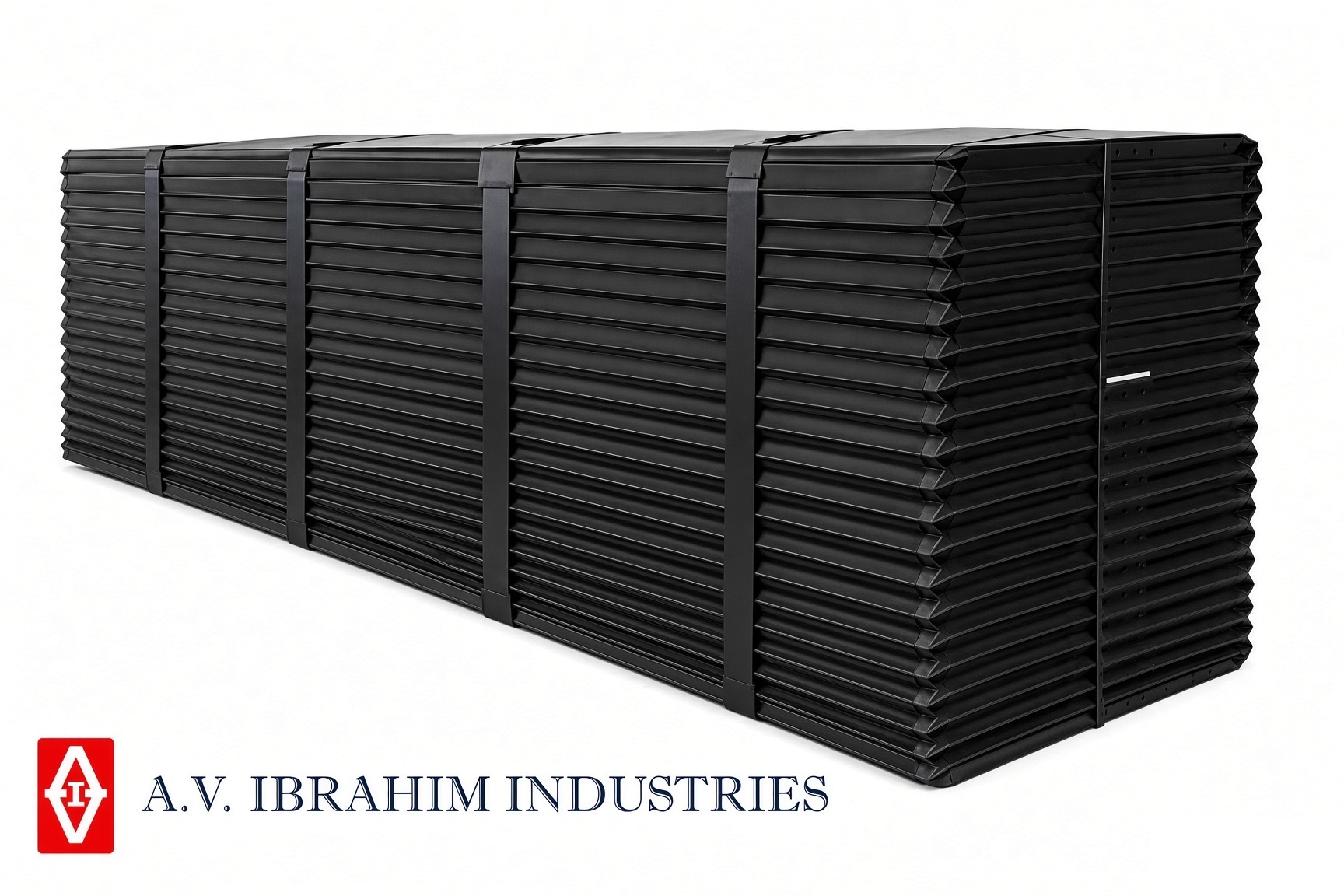

A.V. Ibrahim Industries manufactures high-quality Bellows for Elevating Platforms that provide effective protection against dust, chips, coolant and other contaminants. These bellows are specially designed to offer smooth and reliable movement while maintaining excellent sealing performance.
Our elevating platform bellows are manufactured using tested synthetic materials that ensure superior performance, longer service life and resistance to demanding industrial conditions.
| Parameter | Details |
|---|---|
| Material | High-grade synthetic fabric / PVC coated fabric |
| Application | Elevating Platforms, Scissor Lifts, Lift Tables |
| Protection | Dust, Chips, Coolant, Oil |
| Temperature Range | -20°C to +80°C (special materials available for higher temp) |
| Mounting | Flange / Frame mounting as per requirement |
| Customization | Fully customizable as per drawing / sample |
| FB in mm (Inch) | FAZ in mm (Inch) | FZD in mm (Inch) | FStroke in mm (Inch) |
|---|---|---|---|
| 25 (0.98) | 38 (1.50) | 5 (0.2) | 33 (1.30) |
| 30 (1.18) | 45 (1.77) | 5 (0.2) | 40 (1.57) |
| 35 (1.38) | 52 (2.05) | 5 (0.2) | 47 (1.85) |
| 40 (1.57) | 62 (2.44) | 5 (0.2) | 57 (2.24) |
| 45 (1.77) | 75 (2.95) | 5 (0.2) | 70 (2.76) |
| 50 (1.97) | 80 (3.15) | 5 (0.2) | 75 (2.95) |
Share your dimensions or drawing and get a quick quotation from our team.
